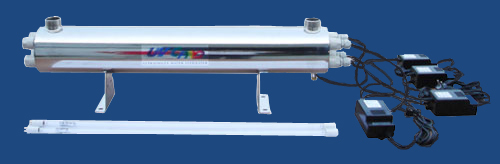

Water Treatment UV System Specification:
1.For clean water: 42GPM/1680Lpm
For DI or RO water: 50GPM/200Lpm
2.UV germicidal lamp: 39W*4 (Model: G842T5L/4P)
3.Ballast: 39W*4
4.Dimension: @140mm*900mm
5.Voltage: 100V-120V,220V-240V,50/60HZ
6.Inlet/Outletsize: 1.5''NPT
7.Max. workingpressure: 125PSI
8.Chamber/Housing: 304 OR 316 stainless steel
9.Quartz Sleeve: SQ230895
10.Lamp failure warning system: LED+Alarm
11.Lamp average life: 9,000 hours
