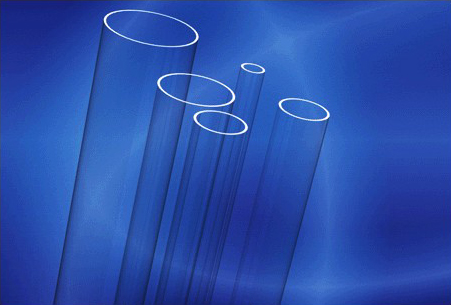

UV quartz sleeve/quartz tube
| ID(mm) | OD(mm) | wallthickness | suggestion application |
| 17.0 | 19.0 | 1.00 | 15mm O.D. standard and high output lamps |
| 18.0 | 20.5 | 1.25 | 15mm O.D. standard and high output lamps |
| 19.0 | 22.0 | 1.20 | 15mm O.D. standard and high output lamps |
| 20.0 | 22.0 | 1.00 | 15mm O.D. standard,high output and Amalgam lamps |
| 20.0 | 22.5 | 1.25 | 15mm O.D. standard and high output lamps |
| 20.0 | 23.0 | 1.50 | 19mm O.D. standard,high output and Amalgam lamps |
| 22.0 | 24.5 | 1.25 | 19mm O.D. standard and high output lamps |
| 22.0 | 25.0 | 1.50 | 19mm O.D. standard and high output lamps |
| 25.0 | 28.0 | 1.50 | 19mm O.D. standard and high output lamps |
| 26.0 | 30.0 | 2.00 | 25mm O.D. standard,high output and Amalgam lamps |
| 26.4 | 30.0 | 1.80 | |
| 30.0 | 33.0 | 1.50 | |
| 32.0 | 36.0 | 2.00 | 32mm O.D. standard,high output and Amalgam lamps |
| 34.0 | 38.0 | 2.00 | 32mm O.D. standard,high output and Amalgam lamps |
| 35.0 | 38.0 | 1.50 | 32mm O.D. standard and high output lamps |
| 42.0 | 45.0 | 1.50 | |
| 44.0 | 48.0 | 2.00 | |
| 45.0 | 48.0 | 1.50 |
