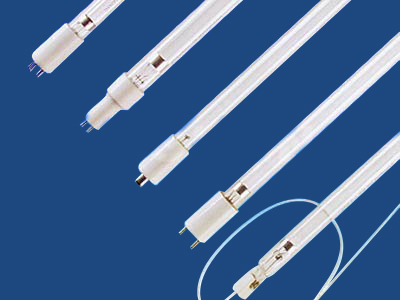

In some cases, a high voltage is applied directly: instant start fluorescent tubes simply use a high enough voltage to break down the gas and mercury column and thereby start arc conduction. These tubes can be identified by a single pin at each end of the tube.
Detail specification
Model | Tube diameter | BF-BF | Arc legth | Power | Current | Voltage at 50/60HZ | Voltage at High Freq | UV Output at 254 nm | Rated Life | ||
Standard Life version | Standard Life version | ||||||||||
mm | mm | mm | w | mA | v | v | uw/cm² | w | h | h | |
Instant start uvc lamp | |||||||||||
G10T5L | 15 | 357 | 277 | 17 | 425 | 51 | 42 | 57 | 5.7 | 9,000 | 13,000 |
G10T5VH | 15 | 357 | 277 | 17 | 425 | 51 | 42 | 57 | 5.7 | 9,000 | 13,000 |
GSL692T5L | 15 | 692 | 612 | 32 | 425 | 94 | 77 | 95 | 11 | 9,000 | 13,000 |
GSL692 T5VH | 15 | 692 | 612 | 32 | 425 | 94 | 77 | 95 | 11 | 9,000 | 13,000 |
G36T5L | 15 | 843 | 762 | 41 | 425 | 120 | 98 | 130 | 15 | 9,000 | 13,000 |
G 36T5VH | 15 | 843 | 762 | 41 | 425 | 120 | 98 | 130 | 15 | 9,000 | 13,000 |
G48T5L | 15 | 1,148 | 1,067 | 55 | 425 | 165 | 135 | 170 | 21 | 9,000 | 13,000 |
G48T5VH | 15 | 1,148 | 1,067 | 55 | 425 | 165 | 135 | 170 | 21 | 9,000 | 13,000 |
G64T5L | 15 | 1,554 | 1,474 | 75 | 425 | 220 | 179 | 220 | 31 | 9,000 | 13,000 |
G64T5VH | 15 | 1,554 | 1,474 | 75 | 425 | 220 | 179 | 220 | 31 | 9,000 | 13,000 |
G67T5L | 15 | 1,630 | 1,550 | 79 | 425 | 231 | 189 | 225 | 32.5 | 9,000 | 13,000 |
G67T5VH | 15 | 1,630 | 1,550 | 79 | 425 | 231 | 189 | 225 | 32.5 | 9,000 | 13,000 |
