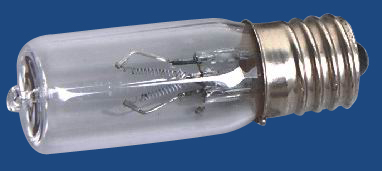

Low Pressure mercury lamps Emitting shortware UV this GTL3 uv bulb,made of uv quartz glass and soft glass,classified to ozone and without ozone Connect into main wire voltage 220V/50Hz or 120V/60Hz with incandescent lamp and/or special made capacitor,no need of ballast,switch on and off up to more than 10000times.
| Model |
Diameter(mm) |
cap(mm) |
length(mm) |
wattage(W) |
Lamp curent(mA) |
Lamp voltage 50/60Hz (V) |
Average useful life(h) |
|
| GTL2 | 17 | E17 | 55 | 2 | 220 | 10 | 3000 | |
| GTL2 | 19 | E17 | 55 | 2 | 220 | 10 | 3000 | |
| GTL3 | 17 | E17 | 63 | 3 | 300 | 10 | 3000 | |
| GTL3 | 19 | E17 | 63 | 3 | 300 | 10 | 3000 | |
| G4S11/57 | 35 | E17 | 57 | 3.5 | 350 | 10 | 3000 | |
Applications:
Germicidal lamps are used for killing and inactivating bacteria, viruses and other primitive organisms.
Common uses are:
•Treatment of air in hospitals and air conditioning systems
•Disinfection of drinking water and waste water
•Disinfection of packing materials, bottles and jars in the food processing industries
•Various photo-chemical process
WARNING: The radiation emitted by these lamps is extremely harmful to all living organisms. Special measures should therefore be taken to protect against direct radiation.
